SIM2000
    Publish time 2024-02-26 13:58

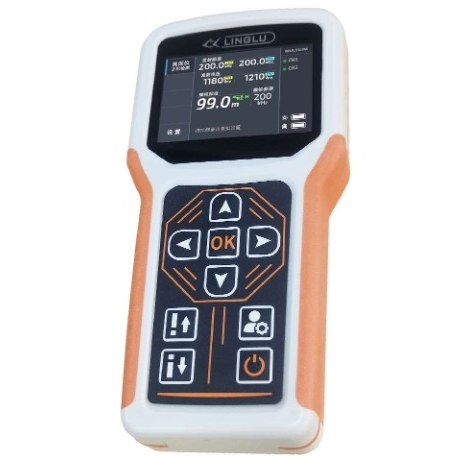

SIM2000

Overview:

This instrument is a dual channel echo sounder simulator. It is suitable for maintenance, testing and teaching demonstrations of marine depth sounders.

·        two testing/signal simulating channels

·        has the function of testing transmitting signal of echo sounder host

·        has the function of simulate transducer echo signal

·        suitable for echo sounders of 200KHz, 50KHz and 38KHz



Technical parameters:

Category

Specifications

Measurement channel

2

Frequency measurement range

20 KHz – 250 KHz

Frequency measurement accuracy

±0.1KHz

Frequency display resolution

0.1KHz

Voltage measurement range

AC200V – 2000V

Voltage measurement accuracy

±10V (sinusoidal peak-to-peak   value)

Voltage display resolution

10V

Simulation depth numerical range

0.1 – 99

Simulation depth unit

m; ft

Echo amplitude level

Level 2

Echo center frequency

200KHz; 50KHz; 38KHz

Battery specification

AA/LR6/5

Number of batteries

4

Instrument size

203×100×34 mm

Instrument weight

350g (without battery)

Operating temperature and humidity

-15℃ ~ +55℃,   10% ~ 90%RH
